StarDot Outdoor Camera Enclosures



Light Duty Outdoor Enclosure with Wall Mount
(ENC-OUTD2, $129)

The Light Duty Outdoor Enclosure (ENC-OUTD2) is an environmental housing designed to keep the camera protected from the elements. It includes a mounting bracket that can be used to secure the camera housing on a vertical or horizontal surface.

   Click to view a detailed wall bracket hole spacing diagram.
 Enclosure Dimensions: 17" (432 mm) Long x 5.5" (139 mm) Wide x 4.5" (114 mm) High
Bracket Dimensions: 12" (305 mm) Long with a 4" (101 mm) by 3.4" (86 mm) base
Total Weight (w/o camera): 5.5 lbs. (2.5 kg) - NetCam XL adds 20 oz. (567 g)

Heavy Duty Outdoor Enclosure, Mount not Included
(ENC-OUTD, 12", $169 / ENC-OUTD15, 15", $189)

The Heavy Duty Outdoor Enclosure is a rugged environmental housing designed to keep the camera protected from the elements (shown here with optional Heavy Duty Wall Mount MNT-WAL). The 12" version is for most camera/lens combinations. If your NetCam has the manual/motorized zoom lens or the weather module, you will need the longer 15" version. Three optional mounting brackets are available (see below).


Enclosure Dimensions:
ENC-OUTD 12" model - 15.5" (394 mm) Long x 6.25" (159 mm) Wide x 6.25" (159 mm) High
ENC-OUTD15 15" model - 18.5" (470mm) Long x 6.25" (159 mm) Wide x 6.25" (159 mm) High

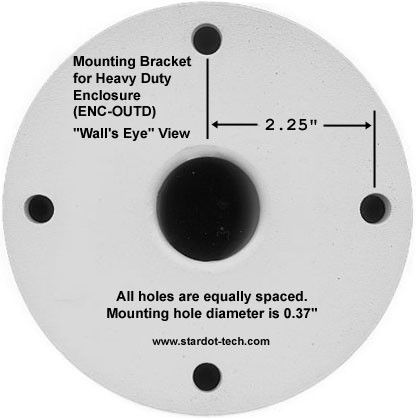

MNT-WAL MNT-WAL Hole Pattern
Details

MNT-WAL, Heavy Duty Wall Mount, $59

Bracket Dimensions: 12" (305 mm) Long with a 5.5" (140 mm) diameter base

Designed for installation on wall or other vertical surface. The mount allows the enclosure to be manually panned and tilted into position. Lock position by tightening pan/tilt bolts. Bolts/screws for securing mount to wall are not included.
MNT-PED MNT-WAL Hole Pattern
Details

MNT-PED, Heavy Duty Pedestal Mount, $69

Bracket Dimensions: 9" (229 mm) Tall with a 5.5" (140 mm) diameter base

Designed for installation on roof or other horizontal surface. The mount allows the enclosure to be manually panned and tilted into position. Lock position by tightening pan/tilt bolts. Bolts/screws for securing mount to roof are not included.
MNT-POL MNT-POL Banding Package

MNT-POL, Heavy Duty Pole Mount Kit, $129

Bracket Dimensions: 12" (305 mm) Long with an 8" (203 mm) high pole mount section

Banding clamp kit is included, bracket is strapped to pole. The mount allows the enclosure to be manually panned and tilted into position. Lock position by tightening pan/tilt bolts.
