StarDot / Express 6 / Order Form

Fill out this form to place your order. Print and fax the form to (714) 228-9283 or e-mail the information to sales@stardot-tech.com. You may also place an order by calling toll-free 1-888-STARDOT (782-7368) or 714-228-9282 (Mon-Fri 8AM-5PM PST).

We can ship direct to any customer worldwide. However to save you shipping and import costs, we have an international distribution network as well as a US/Canada dealer network. You may order directly from StarDot or use any of our resellers.

All StarDot products have a 30-day return policy and one year warranty.

Network Video Servers
Photo Part Number Description Price Quantity
SRV-EXP6

Detail		 SRV-EXP6 Express 6 Video Server
Six-port standalone streaming video server with built-in web server, Ethernet, serial ports & alarm inputs. Includes video server, power supply, network cable, optional configuration cable and StarDot Tools easy Setup Wizard software
Max FPS with 1 camera - 10 FPS
Max FPS with 6 cameras - 1 FPS 		$595 OUT OF STOCK
SRV-EXP4

Detail		 SRV-EXP4 Express 4 Video Server
Four-port professional standalone streaming video server with built-in web server, Ethernet, serial ports, looping outputs & alarm inputs. Includes video server, power supply, network cable, optional configuration cable and StarDot Tools easy Setup Wizard software
Max FPS with 1 camera - 30 FPS
Max FPS with 4 cameras - 30 FPS 		$695
SRV-EXP2

Detail		 SRV-EXP2 Express 2 Video Server
Two-port professional standalone streaming video server with built-in web server, Ethernet, serial ports, looping output (single cam mode), S-Video support & alarm inputs. Includes video server, power supply, network cable, optional configuration cable and StarDot Tools easy Setup Wizard software
Max FPS with 1 camera - 30 FPS
Max FPS with 2 cameras - 5 FPS 		$495
Video Cameras for the Express 6/4/2
Photo Part Number Description Price Quantity
CAM-VB
Detail		 CAM-VB Color Compact Block Camera
Accepts industry-standard C/CS-mount lenses including auto iris (lens not included, choose below), 1/3" Sony Super HAD CCD sensor (330 TV Lines), 0.5 LUX at f1.2, includes wall mount and 12VDC power supply
Compare Image Quality		 $139
CAM-VBH2 CAM-VBH2 High Resolution Color Block Camera
Accepts industry-standard C/CS-mount lenses including auto iris (lens not included, choose below), 1/3" Sony Super HAD CCD sensor (520 TV Lines), 0.3 LUX at f1.2 (up to 0.002 LUX), includes wall mount and 12VDC power supply
 $219
CAM-VBLC
 CAM-VBLC2 High Resolution Color Bullet Camera
Built-in wide angle lens (4mm), 1/3" Sony Super HAD CCD sensor (470 TV Lines), 0.5 LUX at f1.2, includes removable sun hood, wall mount and 12VDC power supply
 $159
CAM-VDOM
Detail		 CAM-VDOM High Resolution Color Dome Camera
Indoor dome camera, built-in wide angle lens (4.0mm), mounts to false ceiling tiles or drywall, 1/3" Sony Super HAD CCD sensor (470 TV Lines), 0.5 LUX at f1.2, includes mounting screws and 12VDC power supply
Compare Image Quality		 $199
CAM-VDOMO CAM-VDOMO High Resolution Vandal-Resistant Color Dome Camera
Indoor/Outdoor dome camera, built-in varifocal auto-iris lens (3.8~9.5mm), images are color when light available, in low light, switches to IR-sensitive black & white mode, IP65 weather rated, mounts to wall or ceiling, 1/3" Sony Super HAD CCD sensor (470 TV Lines), 0.5 LUX at f1.2, includes custom wall bracket and 12VDC power supply
Compare Image Quality		 $249
CAM-VBLCIR
 CAM-VBLCIR High Resolution Day/Night Infrared Camera
Weather rated day/night camera with 24 built-in Infrared lights (images are color in the day, black & white at night), built-in 6mm lens, 1/3" Sony Super HAD CCD sensor (470 TV Lines), 0 LUX with LEDs, includes wall mount and 12VDC power supply
Compare Image Quality		 $299
Video Camera Cable
Photo Part Number Description Price Quantity

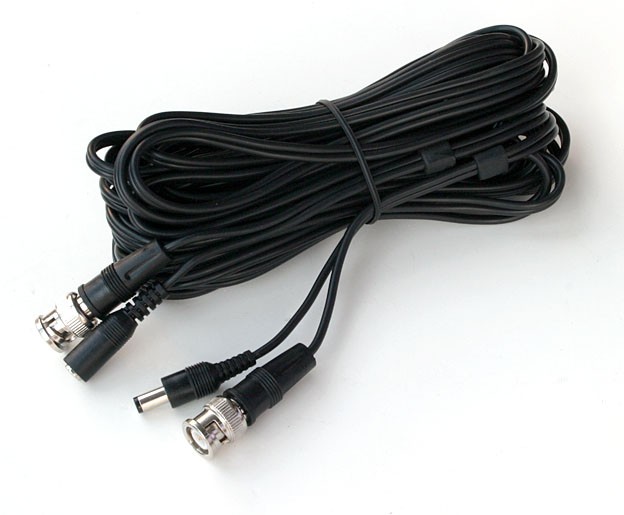

Detail CAB-025PV 25 ft. (7.5 meters) Power/Video Cable
Simplify installation with power/video cable, no power source needed near camera, indoor use only		 $19

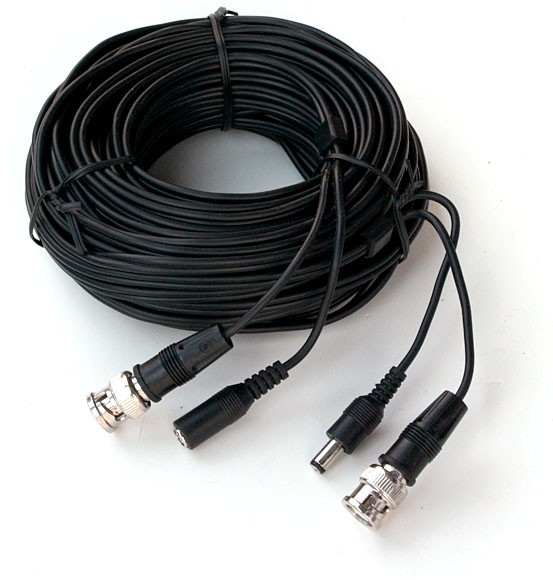

Detail CAB-050PV 50 ft. (15 meters) Power/Video Cable
Simplify installation with power/video, no power source needed near camera, indoor use only		 $29
Detail CAB-100PV 100 ft. (30 meters) Power/Video Cable
Simplify installation with power/video, no power source needed near camera, indoor use only		 $39
Detail CAB-150PV 150 ft. (45 meters) Power/Video Cable
Simplify installation with power/video, no power source needed near camera, indoor use only		 $59
CAB-COUPLBNC CAB-COUPLBNC Video Cable Coupler
BNC female to BNC female coupler used to join together two video cables		 $3
CAB-BNCT CAB-BNCT Video Cable T-Splitter
2 x BNC female, 1 x BNC male video T-Splitter
(e.g. split camera signal into Express 6 and multiplexer)		 $6
CAB-BNCRCA CAB-BNCRCA Video RCA to BNC Adapter
RCA female to BNC male adapter
(e.g. connect camcorder or VCR to Express 6)		 $4
  CAB-BALUN Video Cable Extender / Power Injector Kit
Extend power and video in single standard CAT5 cable up to 1000 ft., kit includes two small transceivers and power supply, no power required at camera end, CAT5 cable not included (not for use with CAM-VBLCIR)		 $59
Mounts / Outdoor Enclosures
Photo Part Number Description Price Quantity
  ENC-OUTD3
Detail		 ENC-OUTD3 Compact Outdoor Enclosure
Weather-resistant outdoor enclosure with wall/roof mount (for use with CAM-VB, CAM-VBH2 or CAM-VBLC/2).		 $59
MNT-CLAMP
Detail		 MNT-CLAMP Indoor Clamping Camera Mount
Quickly install a camera virtually anywhere with this c-clamp camera mount. Clamps onto tables, pipes, posts, etc. up to 1.5" thick. Camera can be pointed in almost any direction with ball & socket and index screw.		 $39
MNT-PRO
Detail		 MNT-PRO Indoor Pro Mount
Position a camera in any direction and at any angle with this rugged aluminum professional indoor camera mount, mounts to horizontal or vertical surface. Dual ball & socket and index screw.		 $39
Lenses for CAM-VB/VBH   -   HOW DO I KNOW WHICH LENS TO CHOOSE?
Photo Part Number Description Price Quantity
DetailLEN-8MMC Standard Lens (for CAM-VB/H only)
8mm, 33° wide, Manual Iris/Focus		 $49
DetailLEN-V550CS Tele Varifocal Lens (for CAM-VB/H only)
5 ~ 50mm, 52°-5.6° wide, Manual Iris/Focus/Zoom		 $179
Security Recording Software
Photo Part Number Description Price Quantity
SOF-DVR16
Detail		 SOF-DVR16 StarDot Network DVR Software (16 Cameras)
View, record and playback video and images from up to 16 Express 6 cameras and NetCams on a Windows PC. The PC can be located offsite or onsite with the cameras. Motion detection, one-button setup and all functionality in one easy to use application. Record months of video on a standard hard disk.
Note: The DVR software is optional. Only a web browser is required to view the Express 6 -- the DVR software is used to view, record and playback Express 6 cameras.		 $295
SOF-DVR100
Detail		 SOF-DVR100 StarDot Network DVR Software (100 Cameras)
Record video from up to 100 cameras and simultaneously view/playback video and images from up to 16 Express 6 cameras and NetCams on a Windows PC. The PC can be located offsite or onsite with the cameras. Motion detection, one-button setup and all functionality in one easy to use application. Record months of video on a standard hard disk.
Note: The DVR software is optional. Only a web browser is required to view the Express 6 -- the DVR software is used to view, record and playback Express 6 cameras.		 $595
Connectivity
Photo Part Number Description Price Quantity
ROUTER-4 ROUTER-4 Cable/DSL Router
Add one or more Express 6 units behind a Cable or DSL modem. Host several Express 6 units (as well as a computer network and NetCams) behind a single WAN IP address. Includes built-in 4-port Ethernet switch. Support provided by StarDot.
Note: Designed for use behind a cable or DSL modem that does not already have a built-in router.		 $79

Sales Tax (California Residents Only) Add

 7.75%
SHIPPING CHARGES
United States
ItemUPS GroundUPS 2-Day
Each Express 6$10$21
Each Camera, Cable or Enclosure$5$10

International
E-mail or call 714-228-9282 for shipping estimate. For international orders, we use Airborne Express and DHL. Delivery time is usually 3-5 days and we can ship virtually anywhere.

First Name
 Last Name
 E-mail
Company
 Address
City
 State
 Zip
 Country
Phone
 Fax
Visa M/C A/E - - - Expiration Date: /

Signature: __________________________________________________________________

© Copyright 2005 StarDot Technologies. Pricing and information subject to change.
All products carry a one year limited warranty and 30-day return policy.

PRINT AND FAX TO 714.228.9283
