NetCam XL Camera Packages
Detail
Complete standalone Internet camera package includes NetCam camera/server, 8mm C/CS-mount lens, 50 ft. power/network cable, indoor wall mount, universal power supply, StarDot Tools software. NetCam XL connects to router or LAN behind Cable, DSL, T-1 or wireless Ethernet bridge, Auto Iris Support built-in.
Frame Rate - Up to 30 FPS
Resolution - Optimum: 1024x768, Max: 2048x1536
Same as above but 1.3 Megapixel Sony CCD
Frame Rate - 5 FPS
Resolution - Optimum: 672x512, Max: 1344x1024
Same as above but 640x480 Sharp CCD
Frame Rate - 30 FPS
Resolution Optimum: 320x240, Max: 640x480
Optional Lenses for NetCam XL 1.3MP & 3MP
HOW DO I KNOW WHICH LENS TO CHOOSE?Manual Iris
or
See description
8mm, 44° wide, Manual Iris/Focus, C-Mount
* If you purchase a lens, the 8mm lens will be removed and you will be credited $30.
Manual Iris
or
See description
(for NetCam XL 1MP/3MP)
75mm, 4.8° wide, Manual Iris & Focus, C-Mount
XL-3MP = Day / Night or Indoor
XL-1MP = Day Only or Indoor
Manual Iris
or
See description
Megapixel Varifocal Lens RECOMMENDED
(for NetCam XL 1MP/3MP)
4.5 ~ 10mm, 80°-37° wide, Manual Iris & Focus/Zoom, CS-Mount, MP
XL-3MP = Day / Night or Indoor
XL-1MP = Day Only or Indoor
** Great quality in manual iris wide angle **
Manual Iris
or
See description
5-Megapixel Varifocal Lens RECOMMENDED
(for NetCam XL 1MP/3MP)
4.5 ~ 13mm, 90°-31° wide, Manual Iris & Focus/Zoom, CS-Mount, MP
XL-3MP = Day / Night or Indoor
XL-1MP = Day Only or Indoor
** Best quality in manual iris wide angle **
Manual Iris
or
See description
Standard Varifocal Lens
(for NetCam XL 1MP/3MP)
4.5 ~ 12.5mm, 84°-30° wide, Manual Iris & Focus/Zoom, CS-Mount
XL-3MP = Day / Night or Indoor
XL-1MP = Day Only or Indoor
Manual Iris
or
See description
Manual Zoom Lens RECOMMENDED
(for NetCam XL 1MP/3MP)
8~48mm, 44°-8°, Manual Zoom/Iris/Focus, C-Mount
XL-3MP = Day / Night or Indoor
XL-1MP = Day Only or Indoor
** Easiest Lens to Adjust Field of View and Focus **
Auto Iris
Varifocal
Day/Night
Wide Varifocal Auto Iris Lens RECOMMENDED
(for NetCam XL 1MP/3MP)
4 ~ 8mm, 90°-47° wide, Auto Iris & Manual Focus/Zoom, C-Mount
** Best quality in auto iris wide angle **
Auto Iris
Varifocal
Day/Night
Standard Varifocal Auto Iris Lens
(for NetCam XL 1MP)
4.5 ~ 12.5mm, 84°-30° wide, Auto Iris & Manual Focus/Zoom CS-Mount
Recommended only for XL-1MP
Motorized Iris
Motorized Zoom
Motorized Focus
Day/Night
(for NetCam XL 1MP/3MP)
8~48mm, 45°-8°, Motorized Zoom/Iris/Focus, Zoom in and out through web interface, iris controlled automatically from camera.
Note: Not available as separate item, must be purchased with NetCam XL 1MP or 3MP. NetCam XL can be sent in for upgrade/installation.
Optional Lenses for NetCam XL 640
HOW DO I KNOW WHICH LENS TO CHOOSE?Day Only or Indoor
(for NetCam XL 640 only)
4mm, 64° wide, Manual Iris & Focus
8mm, 33° wide, Manual Iris/Focus
* If you purchase a lens, the 8mm lens will be removed and you will be credited $30.
Day Only or Indoor
(for NetCam XL)
75mm, 3.6° wide
Manual Iris & Focus
Day/Night
(for NetCam XL 640 only)
3.5 ~ 8mm, 81°-35° wide
Auto Iris, Manual Focus & Zoom
Day/Night
(for NetCam XL 640 only)
5 ~ 50mm, 53°-5° wide
Auto Iris, Manual Focus & Zoom
Day/Night
(for NetCam XL 640 only)
6 ~ 36mm, 44°-8° wide
Motorized Zoom/Iris/Focus
Zoom in and out through web interface, iris controlled automatically from camera.
Note: Not available as separate item, must be purchased with NetCam. NetCam can be sent in for upgrade/installation. NOT compatible with “C0” series NetCams.

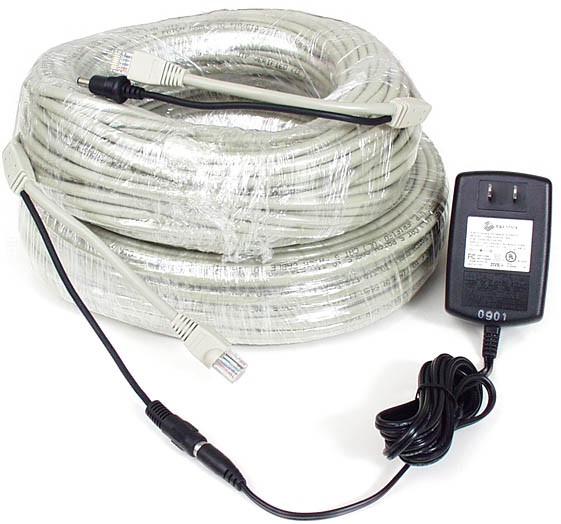

Optional Cable - Ethernet/Power
(NetCam XL always includes a 50 ft. Power/Ethernet cable)
Mounts / Outdoor Enclosures
Detail
Rugged weather-resistant outdoor enclosure. Shown with wall mount (not included). Select mount below.
 |
MNT-WAL Heavy Duty Wall Mount |
 |
MNT-PED Heavy Duty Pedestal Mount |
 |
MNT-POL Heavy Duty Pole Mount Kit |
Detail
Weather-resistant outdoor enclosure with wall mount.
Detail
Position NetCam in any direction and at any angle with this rugged aluminum professional indoor camera mount, mounts to horizontal or vertical surface. Dual ball & socket and index screw.
Connectivity
Add one or more NetCams behind a Cable or DSL modem. Host several NetCams (as well as a computer network) behind a single WAN IP address. Includes built-in 4-port Ethernet switch. Support provided by StarDot.
Note: Designed for use behind a cable or DSL modem that does not already have a built-in router.
Optional Recording Software
Detail
View, record and playback time-lapse video from 16 NetCams, all from a standard Windows PC. The PC can be located offsite or onsite with the cameras. One centralized PC can record images from 16 diferent camera locations. Motion detection, one-button setup and all functionality in one easy to use application. Record years of time-lapse video on a standard hard disk (great for security or construction archives).
Note: The DVR software is optional. Only a web browser is required to view NetCam -- the DVR software adds the option to record and playback NetCams. NetCam's built-in FTP client can also archive images on a standard web server.
Sales Tax (California Residents Only) Add
SHIPPING
U.S. - 1 x Camera - UPS Ground: $10.00
U.S. - 1 x Camera - UPS 2-day: $21.00
*International, multi-camera or enclosures,
e-mail or call 714-228-9282
for shipping estimate.
For international orders, we use
Airborne Express and DHL.
Delivery time is usually 3-5 days
and we can ship virtually anywhere.
